Multi-User or Network Installation

Installation Phase 1

The multi-user / network installation of OpenOffice.org is carried out in two phases. First, login as root or system administrator or as a normal user with corresponding system access rights on the target computer or network computer. Carry out the complete OpenOffice.org installation in a directory to which the users have read and execute access rights. Second, after the Phase 1 is complete, each user can log in to the system and perform a Workstation Installation of OpenOffice.org in a folder in his or her home directory.

To start up the Phase 1 installation, simply Invoke the setup program from the installation directory and add the parameter -net.

The Phase 1 installation does not result in an OpenOffice.org version that can be run directly (even by root or the system adminstrator). Thus, if required, the root or the system administrator also has to carry out a workstation installation.

Installation Requirements

About 250 MB of space needs to be available on the target machine directory which is to contain the OpenOffice.org installation. During the installation about 20 MB space is required for temporary files. The temporary files will be automatically deleted after the installation has been completed successfully. Under Unix you will need a swap volume of about 80 MB.

Starting the Installation

Go to the graphical X Window interface if it was not already automatically activated.
Go to the installation directory either by command line in a terminal window or through the File Manager.
Call the installation script with the command

./setup -net

As an alternative, Unix users may use the install script from the command line to perform a non-graphical installation.
Type

./install --help

for its syntax or see Automated Installation under Unix in the Appendix for more information.

Call the Setup.exe program from the installation directory using the -net parameter.
To start the setup program by using a parameter, open the Start menu on the Start bar, select the Run... command and enter the following line in the text box (you can also use the Browse button to find the file and to correctly enter the path in the text box):

X:\{tempdir}\install\setup.exe -net

where X:\{tempdir} is the temporary installation directory where the installation files reside after decompressing the downloaded installation file.

The Setup Procedure

Welcome

The first thing to appear on the screen is a welcome dialog.

In many of the setup program dialogs you will see a Help button which displays brief information about the current dialog. After you have read the Help text, use the Back button to return to the setup program. Do NOT close the Help with the "X" system button (top right) as this would exit the setup program.

Confirm the Welcome dialog by clicking the Next button.

Important Information

Now a window appears containing the readme.txt file (Windows) or README file (Solaris and Linux). This file can also be opened and read from the OpenOffice.org directory after the installation process is completed.

Read the information and confirm by clicking Next.

License Agreement

The next dialog contains the license agreement.

Carefully read the license agreement. If you agree to all points, click Accept to continue with the installation. If you do not agree to the license agreement click Cancel. In the latter case OpenOffice.org will not be installed.

Type of Installation

The next dialog in the OpenOffice.org setup program allows you to select the type of installation to be carried out.

The memory requirements shown here are approximates based on the cluster sizes of the next target directory containing sufficient free space.

When installing OpenOffice.org on a network server you should install all of the available components. To do this select the Custom Installation and select all of the options contained in the dialog following on from the next one in which a directory is chosen.

Select Custom Installation.
Click Next to continue the installation.

Installation Directory

The next dialog to appear is for selecting the installation directory.

In the top part of the dialog, there is a list of the drives on your system with details regarding how much space is required and how much space is available. The amount of memory required can differ due to different drives and cluster sizes.

You can also select the installation path from a selection dialog by clicking Browse or by directly entering the path in the text box. If the directory entered does not exist, you will be asked if it should be created. OpenOffice.org will install files and other subfolders with files in the directory you specify.
Click Next to continue the installation.

Select a directory in which all users have read and execute rights so that the workstation installations can be carried out.

Component Selection

If you have selected the Custom Installation you will now see a dialog for selecting the components to be installed.

As a rule, all of the components which have a colored box next to their name will be installed. If you do not want to install a particular component, click the box next to the name and it will change to gray. Each time you click one of the boxes, it will change from colored to gray or vice versa, and the corresponding component and all subordinate components will either be part of the installation (colored) or not part of the installation (gray).

When you click the plus sign next to the name of a component, a list of the subordinate components will be revealed. Again, clicking the individual boxes will either include the components in or exclude them from the installation. If a group entry contains components to be installed as well as components excluded from installation, the box in front of the group entry will appear semi-transparent. For example, the box in front of the OpenOffice.org Writer text filters is by default semi-transparent because the default setting does not include all filters.

You can use the Default button, to restore the settings that were originally shown when the dialog was opened for the first time.

Entries shown in red denote that these components will be installed no matter what and that they cannot be deselected.

Select the modules and components you want to include in the installation.
Click Next to continue the installation.

Concluding the Installation Options

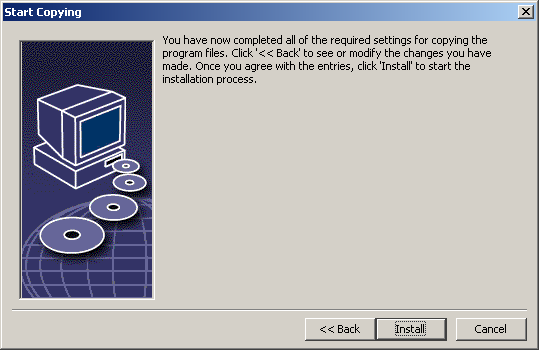

A dialog will inform you that all of the details needed to copy the program files have been entered.

Click Install to continue the installation.

Copying the Files

On screen, you will see how the installation is progressing and approximately how much time is left till the installation is complete.

Concluding the Installation

After the process of copying and registering the files is finished, you will see the final dialog.

Click Complete to finish the installation.

Now, with the aid of the workstation installation, each user can install OpenOffice.org in his or her Home directory or local hard disk.

As system administrator, you can also call the printer administration utility spadmin in order to, among other things, define printer settings for the individual user installations and to install fonts. You can find more details on spadmin in the Appendix.

Workstation Installation

Every user can carry out a user installation under his or her login name by calling the setup program from the installation made in Phase 1.

Installation Requirements

About 2 to 4 MB of free space is required on the hard disk where OpenOffice.org is to be installed.

Starting the Installation

Before the workstation installation can be initiated, a Phase 1 installation must have been carried out successfully as described under Installation Phase 1

If you have already installed a previous version of OpenOffice.org, you should first check to see if this file exists:

.sversionrc file in your Unix home directory or
sversion.ini file in the Windows user directory.

This file contains the path and version number of an already installed OpenOffice.org. If the version number is identical to the version number of the OpenOffice.org to be installed, you must deinstall the old OpenOffice.org version before you can install the new one.

Go to the graphical X Window interface.
Open a terminal window and use the command line to go to the network installation path on the server and then to the program sub-directory. If the server installation was made in the directory /opt/OpenOffice.org1.0, this could be done using the command:

cd /opt/OpenOffice.org1.0/program
Start the installation script with the command

./setup

Run the Setup.exe program located in the network installation directory on the server.
When working under Windows you can use the Windows Explorer to call up the setup program.

The Setup Procedure

Welcome

The first thing to appear on the screen is a welcome dialog.

Confirm the Welcome dialog by clicking the Next button.

Important Information

Read the information and confirm by clicking Next.

License Agreement

The next dialog contains the license agreement.

Carefully read the license agreement. If you agree to all points, click Accept to continue with the installation. If you do not agree to the license agreement click Cancel. In the latter case OpenOffice.org will not be installed.

User Data

You will now see the Enter User Data dialog.

Enter your personal data.
The data entered here will be used in fields in OpenOffice.org, for example, to automatically insert your data into the corresponding fields in letter and fax templates.
You can also access this dialog later by choosing Tools - Options - OpenOffice.org - User Data.
Click Next to continue the installation.

Type of Installation

Select the Workstation Installation as your user installation. Only the files that contain variable data for a user will be installed.
The Local Installation option installs a complete OpenOffice.org locally. The server installation serves as the source.
Click Next to continue the installation.

Installation Directory

The next dialog to appear is for selecting the installation directory.

You can also select the installation path from a selection dialog by clicking Browse or by directly entering the path in the text box. If the directory entered does not exist, you will be asked if it should be created. OpenOffice.org will install files and other subfolders with files in the directory you specify.
Click Next to continue the installation.

Concluding the Installation Options

A dialog will inform you that all of the details needed to copy the program files have been entered.

Click Install to continue the installation.

Assigning File Types

In the following dialog, select which additional file types are to be opened with OpenOffice.org. OpenOffice.org will be registered in the operating system as the default program for these file types.

Select the file types that OpenOffice.org is to open in addition to its own file types.
To use OpenOffice.org as default editor for HTML files (Web pages), mark the check box under Default HTML Editor. This setting only applies to editing HTML files. They will be opened with your browser (e.g. Netscape).
ClickOK.

Java™ Runtime Environment

The next dialog to appear lists the Java Runtime Environment versions registered in your system.

In this dialog, select the Java Runtime Environment you want to use. You require version 1.3.1 or higher. If you have already installed a newer version than 1.3.1, you do not have to install the version provided as long as OpenOffice.org identifies your version as verified.

Select the preferred option and click OK.

Copying the Files

On screen, you will see how the installation is progressing and approximately how much time is left till the installation is complete.

Concluding the Installation

After the process of copying and registering the files is finished, you will see the final dialog.

Click Complete to finish the installation.

Starting OpenOffice.org

Under Windows in the Start menu under programs / OpenOffice.org 1.0, you will now find menu entries for starting the various OpenOffice.org components that have been installed.

During the OpenOffice.org installation, a link is created in the autostart folder of the Windows Start menu. This link leads to the OpenOffice.org Quickstarter, which is available in the system tray after you restart your system.

Right-click the Quickstarter icon to activate a context menu from which you can start various OpenOffice.org components.

Detailed information on Quickstarter functionality can be found in the Help under the word "Quickstart".

To start OpenOffice.org under Unix,go to the OpenOffice.org1.0 /program directory, or to the local OpenOffice.org directory in your home directory, and start OpenOffice.org with the command

./soffice

You can also place the OpenOffice.org1.0/program directory into the path for programs under Unix. You will then be able to start OpenOffice.org by using the command "soffice" in any directory. To set up the default printer, call the Printer Administration Utility spadmin, which is described in the Appendix.

After completing the installation process under the Solaris Operating Environment, you should log out and log in again to update the CDE integration.
