User Guide for the Office Scripting Framework

Contents

• Pre-requisites

• Binding Office Scripts

• Running the example Office Scripts

• Leveraging StarBasic Security

• Different behaviour in the Scripting Framework

• Troubleshooting

Pre-requisites

Before you install the Scripting Framework, be aware of the following:

• This is an Early Developer Release of the Office Scripting Framework provided for users and developers of OpenOffice.org to try out and provide feedback. Future releases of the Framework may change.

• This release of the Scripting Framework runs only on OpenOffice.org 1.1 rc and above.

• The Scripting Framework is currently available in English only.

Binding Office Scripts

The execution of Office scripts can be bound to menu and key items and also to application or document events. These bindings can be defined via a set of Assign dialogs which can be started from the Tools/Scripting Add-on's menu

Assigning scripts to Menu and Key items

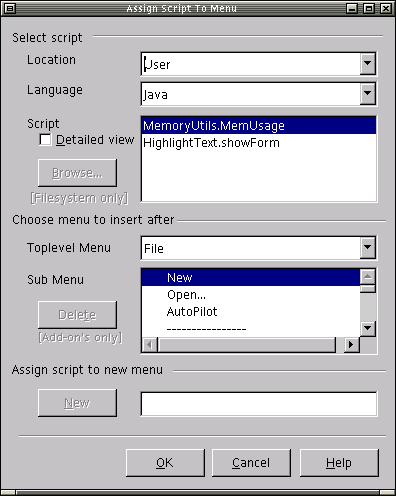

The dialog shown below is the Assign Script to Menu dialog. This dialog is similar in design and function to the Assign Script to Key dialog and the instructions below should be seen to apply also to the Assign Script to Key dialog.

• Location

  The location combo box will be populated with “User”,”Share”, “Document” or "Filesystem" the default value will be “User” which will display all scripts (with the selected language type) in the “User” area.

• Language

  The language combox is populated with the list of supported languages. The default language is set to Java.

• Script ListBox

  Only necessary information will be displayed, logicalname will always be displayed, if the “Detailed view” check box is selected the scripts will be displayed as follows “logicalname [functionname]”

• Browse

  A new feature in the 0.3 release is the ability to bind to scripts on the filesystem (without an associated parcel-descriptor.xml). Clicking [Browse] pops up a filechooser dialog enabling the user to populate the Script ListBox. As the Java Script Runtime (not to be confused with the JavaScript Script Runtime!!) does not support running scripts from the Filesystem, the Browse button is enabled only when the Location combo box is set to "Filesystem", and Language combo box is set to something other than "Java".


• New

  This button will not be selectable unless a script from the script ListBox and a menu name is entered in the new menu text box (opposite New button), clicking [New] creates a binding between two.

• Delete

  This button will not be selectable unless a sub menu with a script binding is selected, clicking [Delete] removes the binding.

• OK

  Clicking [OK] commits all of the changes the user has made

• Cancel

  Disposes the dialog without committing any changes.

• Help

  Will display a dialog describing how to use each of the “Assign Script” dialogs.

Note: Unlike StarBasic it will not be possible to setup a key binding that applies for the whole Office suite – key bindings can only be setup for an application or a document of that application type.

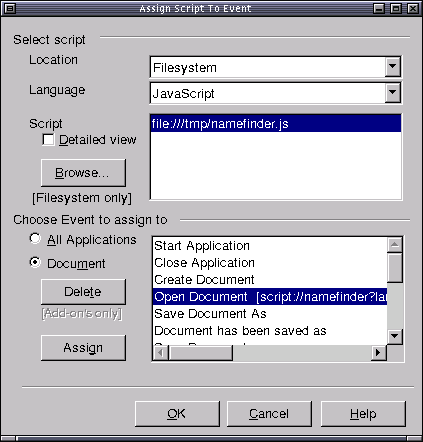

Assigning scripts to events

• Browse

  A new feature in the 0.3 release is the ability to bind to scripts on the filesystem (without an associated parcel-descriptor.xml). Clicking [Browse] pops up a filechooser dialog enabling the user to populate the Script ListBox. As the Java Script Runtime (not to be confused with the JavaScript Script Runtime!!) does not support running scripts from the Filesystem, the Browse button is enabled only when the Location combo box is set to "Filesystem", and Language combo box is set to something other than "Java".

• Event ListBox

  The ListBox will be populated with the list all event types, if a script has already been assigned to an event the existing binding is displayed as follows

  Event [ script URI ]

  example:

  Start Application [script://Highlighter.BeanShell?language=BeanShell&function=highlighter.bsh&location=user]

• Radio Buttons

  By default the “Document” radio button is selected, if selected the event binding is for this document only. If “All Applications” is selected then the event binding is for all documents of all application types ( writer, calc etc. )

• Assign

  This button will not be selectable unless a script from the script ListBox and event from the event ListBox are highlighted (selected), clicking [Assign] creates a binding between two.

• Delete

  This button will not be selectable unless an event with a script binding from the event ListBox is selected, clicking [Delete] removes the binding.

• OK

  Clicking [OK] commits all of the changes the user has made

• Cancel

  Disposes the dialog without committing any changes.

• Help

  Will display a dialog describing how to use each of the “Assign Script” dialogs.

Other Scripting-Add'ons Menu Items

Two other menu items are available under the Tools/Scripting Add-on's submenu:

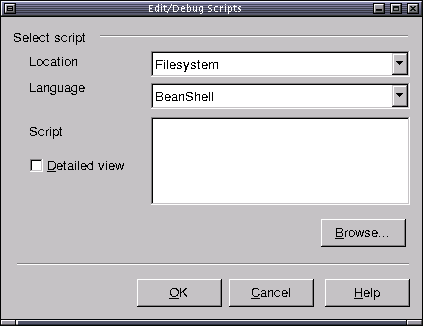

• Edit/Debug Scripts - This pops up a dialog in which the user can experiment with writing and executing JavaScript & BeanShell code. As with the Assign dialogs, the [Browse] button allows the user to select scripts located on the filesystem. (and is only enabled under the same conditions as in the Assign dialogs). See Writing Scripts in BeanShell and Java for more information on using this window.








• Refresh All Scripts - This is used to refresh the script lists that appear in the Assign dialogs after new scripts have been deployed into your OpenOffice.org installation or documents.

Top

Running the example Office Scripts

There are two examples scripts supplied with the Scripting Framework, Highlight and MemoryUsage. Highlight is an application level script for Writer that allows the user to search for a word or phrase. It will highlight all instances in red and give a count of the number of instances.

The second example, MemoryUsage, is a script stored in a Calc spreadsheet that checks the current memory usage in the Java Virtual Machine and updates cells in the spreadsheet with the usage values. The spreadsheet also contains a graph which will update when the cell values are changed.

The examples are available for both Java and BeanShell in the language directories created under <Office Installation>/user/Scripts by the installer.

Running the Highlight example

To run this example you first need to create a menu item from which you can execute the script.

• Start OpenOffice.org and open an existing Writer document or create a new one.

• Select the menu item Tools/Scripting Add-on's/Assign Scripts To Menu...

• In the "Assign Scripts To Menu" dialog that pops up do the following:

  • Select location and language

    • Set the location to User and the language to Java in the drop down lists.

  • Select script

    • Select the script HighlightText.showForm from the list.

  • Choose the menu to insert the script menu after

    • Select the top level menu and submenu under which you want to place your new menu item.

  • Assign script to new menu

    • In the New Menu text field enter the label you want for your menu item (eg. Highlight)

    • Click New Script Menu to create the new script menu item.

• Finally click on the OK button to save your new script menu item.

• Your new menu item will now be available and clicking on it will invoke the script.

• You should see a Highlight Text dialog appear which you can use to highlight various text strings you are looking for in the document.

Running the MemoryUsage example

The Java version of the MemoryUsage example is already deployed inside an Office document, ExampleSpreadSheet.sxc. To run the Java example, just open:

<Office Installation>/user/Scripts/java/ExampleSpreadSheet.sxc.

You can then execute the MemoryUsage script by pressing CTRL+Shift+M with the ExampleSpreadSheet.sxc window focused. You should see the memory usage values being updated, and the graph should change to reflect the new values.

Running the ExportSheetsToHTML example

To run this example you first need to create or open an existing spreadsheet document. If you have created a new document save it (eg. c:\temp\mycalcdoc.sxc)

• Select the menu item Tools->Scripting Add-ons->Assign Script to Key
• Select the location "User", and language "JavaScript.
• Select the example script ExportSheetsToHTML.JavaScript
• Select the key group CONTROL + letters, and then select the Shortcut Key CONTROL + H
• Press the Assign button, and then the OK button.

This will have created a key binding to the ExportSheetsToHTML script. Pressing CONTROL + H will now save each sheet in HTML format in the same directory as the original document (eg. c:\temp\mycalcdoc_sheet1.html, c:\temp\mycalcdoc_sheet2.html, ...)

Top

Leveraging StarBasic Security

As part of the Early Developer Release v0.2 of the Scripting Framework, we have attempted to mimic the Security settings for StarBasic.  The settings allow the user to control the execution of macros present in OpenOffice.org documents. Found in  the  Tools->Options dialog under  OpenOffice.org->Security, these  settings allow the user  to specify the conditions under which it is permissable to execute document based StarBasic macros. The settings in this dialog now apply to both StarBasic macros and Scripting Framework scripts.
A full description of how these settings work can be found by clicking the "Help" button in the dialog, and then clicking "OpenOffice.org", and "Security" in the left-hand pane of the Help dialog. The possible scenarios associated with the security settings are summarised in the table below.

"Run Macro"	"Confirm in the case of other document sources"	"Show Warning before Running"	Document path in "Path List"	Behaviour
Never	N/A	N/A	N/A	Macros never run. No warning displayed.
According to path list	No	No	No	Macros never run. No warning displayed.
According to path list	No	No	Yes	Macros run. No warning displayed.
According to path list	No	Yes	No	Macros never run. No warning displayed.
According to path list	No	Yes	Yes	Warning displayed on document load. If "Run" button clicked macros will run, otherwise they will not.
According to path list	Yes	No	No	Warning with checkbox to add path to path list is displayed on document load. If "Run" button clicked macros will run, otherwise they will not. Regardless of which button is clicked, if checkbox is ticked document path is added to "Path List".
According to path list	Yes	No	Yes	Macros run. No warning displayed.
According to path list	Yes	Yes	No	Warning with checkbox to add path to path list is displayed on document load. If "Run" button clicked macros will run, otherwise they will not. Regardless of which button is clicked, if checkbox is ticked document path is added to "Path List".
According to path list	Yes	Yes	Yes	Warning displayed on document load. If "Run" button clicked macros will run, otherwise they will not.
Always	N/A	No	N/A	Macros run. No warning displayed.
Always	N/A	Yes	N/A	Warning displayed on document load. If "Run" button clicked macros will run, otherwise they will not.

Top

Different behaviour in the Scripting Framework

The Script Security has one significant difference in behaviour to the StarBasic security. In the Scripting Framework the security warning dialogs are displayed only upon the first script invocation on a document containing scripts, unlike StarBasic where the dialogs are displayed on loading a document containing macros.
If the settings are "Always", and "Show Warning Before Running", when loading a document containing macros the StarBasic dialog display is incorrect (the dialog displayed is more appropriate to the "According To Path List" setting). This has been logged as Issue 11822, the fix for which is not in the OpenOffice.org 1.1 beta release. Under the Scripting framework the correct dialog is displayed.

Top

Troubleshooting

See the Release Notes page.

---

Last Modified: Tue Jul 15 16:16:07 BST 2003
